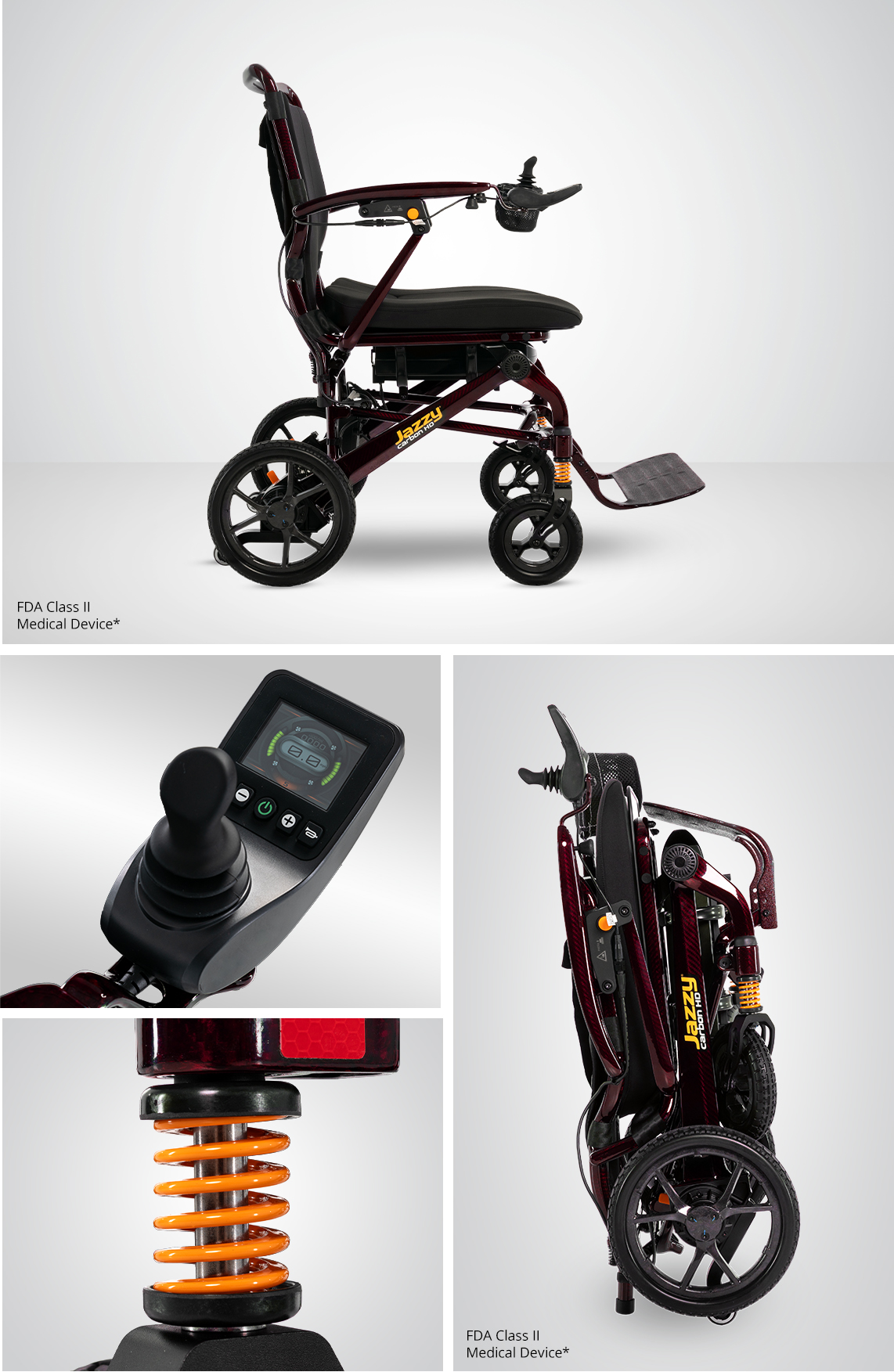

Jazzy® Carbon HD

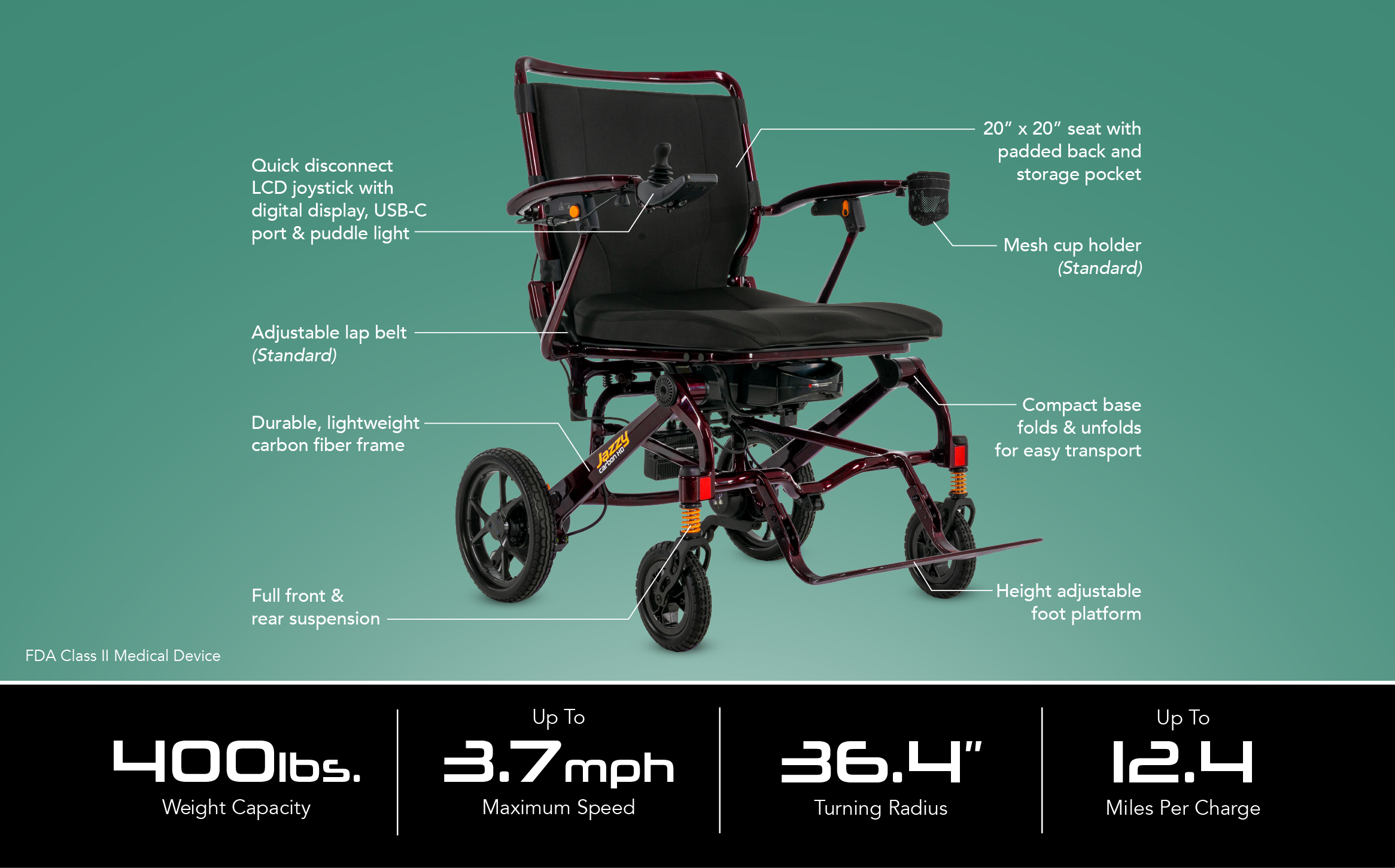

Jazzy® Carbon HD Features:
Unit weighs 32.2 lbs. without the battery
400-lb. weight capacity
Durable carbon fiber frame
Front and rear suspension
Top speed of up to 3.7 mph
Battery range of up to 12.4 miles
20″ x 20″ seat
Easy fold design that locks into folded position
Folded dimensions: 31.3” L x 26.4” W x 13 H
Flip up lightweight carbon fiber arms
Padded seat back with removable cushion
Extra-wide adjustable foot platform 17.25” W x 5.9” D
20 Ah lithium battery (standard)
Storage pocket on back of seat
Quick disconnect LCD joystick with digital display, USB-C port & puddle light
Mesh cup holder, cushion, and adjustable lap belt, (standard)
K0899 Power Mobility Device, not coded by DME PDAC or does not meet criteria.
Available Colors: Black Cherry, Night Sky

*This product is an FDA Class II Medical Device designed to aid individuals with mobility impairments.

Model Jazzy® Carbon HD
Weight Capacity 400 lbs.
Maximum Speed1 Up to 3.7 mph
Ground Clearance3 1″ at motor
Turning Radius3 36.4″
Overall Length3 36.81″
Overall Width3 26.4″
Suspension Full Front and Rear Suspension
Front Wheels 6.5″
Rear Wheels 10.6″
Range per Charge1,2 Up to 12.4 Miles per charge
Product Weight Without Batteries3,5 32.2 lbs. without batteries
Standard Seating3 Dimensions: 20″ x 20″ seat
Seat sling with removable cushion
Folded Dimensions 31.3″ L x 26.4″ W x 13″ H
Drivetrain/Motor Output 24V 250W Brushless motors
Braking System Regenerative and electromechanical
Battery Requirements Type: Lithium battery box
Size 20 Ah
Battery Weight4 7.5 lbs.
Battery Charger 2 Amp
HCPCS Codes K0899 Power Mobility Device, not coded by DME PDAC.
DME providers are responsible for determining appropriate billing codes when submitting for insurance reimbursement. HCPCS codes provided should not be considered as legal advice and not guarantee reimbursement.
Payer coding, coverage and bundling guidelines may apply.
Warranty Frame: 5-year
Electronics: 1-year limited
Drivetrain: 1-year limited
Battery: 1-year limited
